Description
This kit is for Cab and Chassis vehicles only and these are rare so chances are you need the non-Cab and Chassis version. See the compatibility tab for details before purchasing this kit. This is a plug and play camera kit that will allow you to add a camera to a cab and chassis truck that has been pre-wired at the factory and has an 8″ or 12″ factory SYNC 4 display. Your truck must be prewired for a camera or this kit will not work. Please see the compatibility tab for more information!
Use this camera for cab and chassis trucks that did not come with a bed from the factory. Simply mount the camera on any flat surface and run the cable to your factory backup camera connection for a simple and seamless installation. Choose the cable length from the drop down above.
The kit also comes with the radio programmer tool so you can turn on the camera function quickly and easily- without having to go to a dealer!

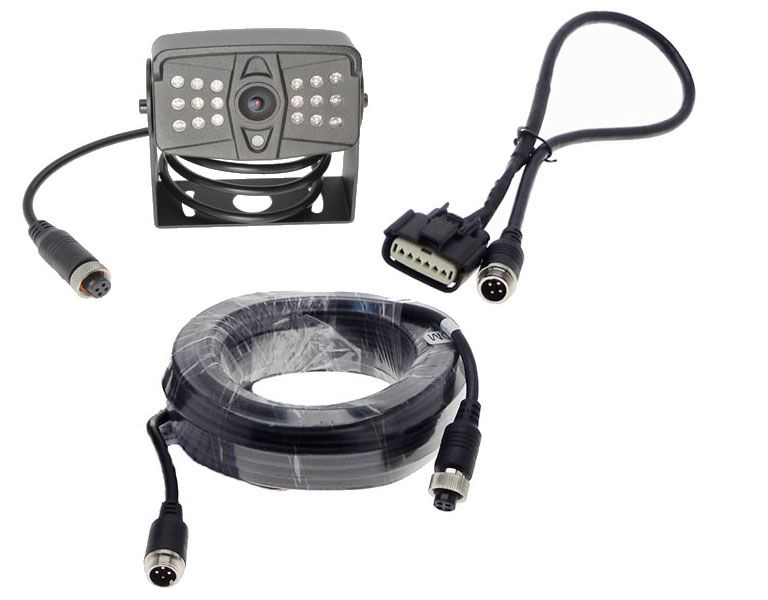

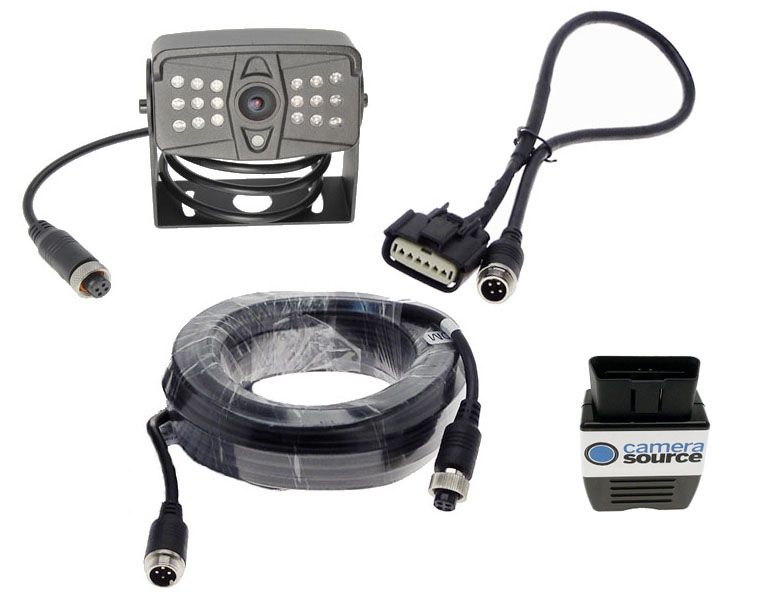

Kit includes the following:
- Heavy duty commercial camera with Sony CCD sensor
- OEM to commercial coax conversion harness-plug and play!
- Coaxial wire harness with weather tight connectors (select length above)
- Camera harness has factory ends for plug and play with your existing wiring.
- OBD programmer for 8″ or 12″ factory SYNC 4 display. Select screen size above.

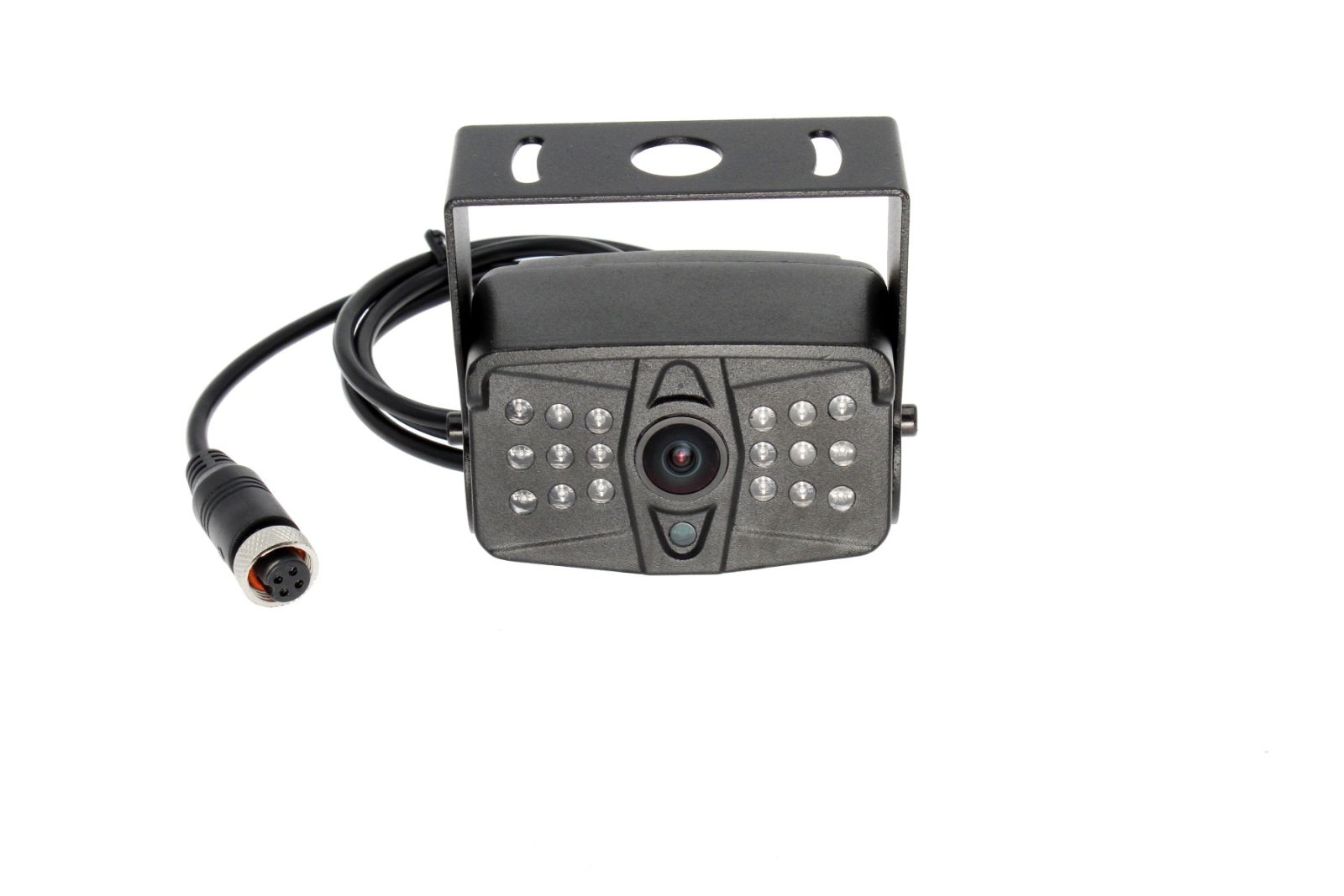

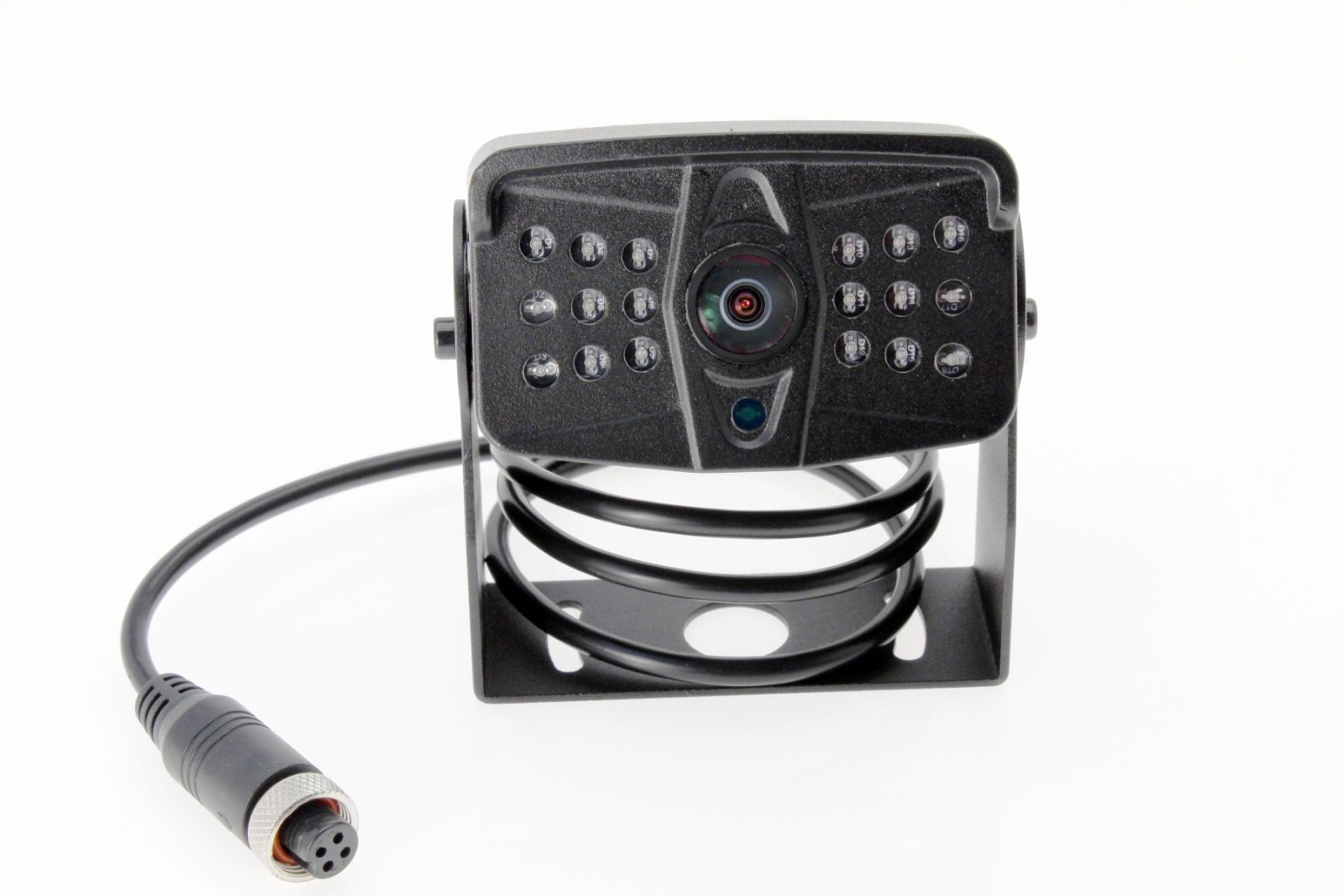

Camera Specifications:
- Sony Ultra CCD for a clear image
- Infra-red LED’s that will create a daytime like display even in complete darkness
- 150 degree view
- 700 TV lines of resolution
- 0 lux (no light required to operate)

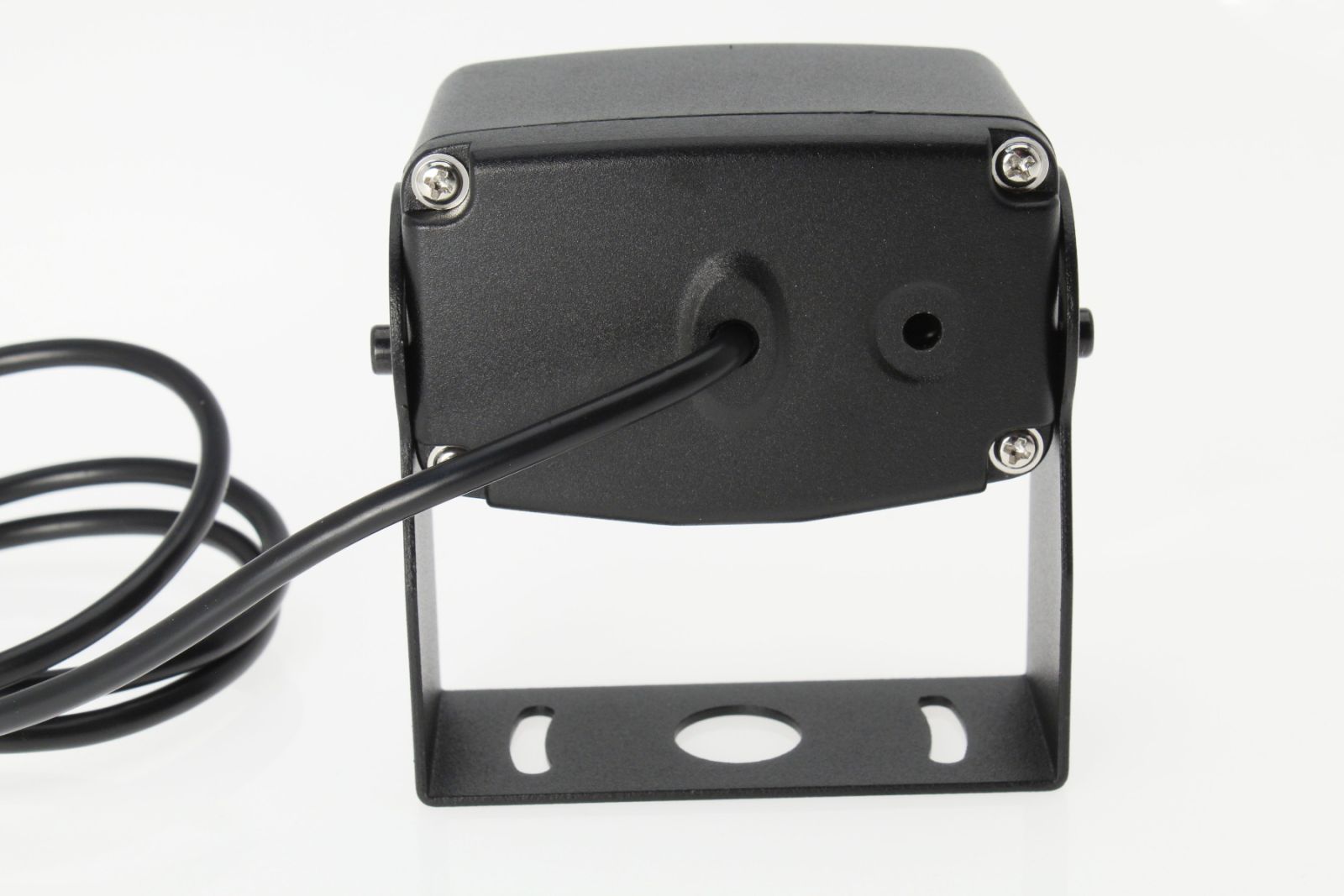

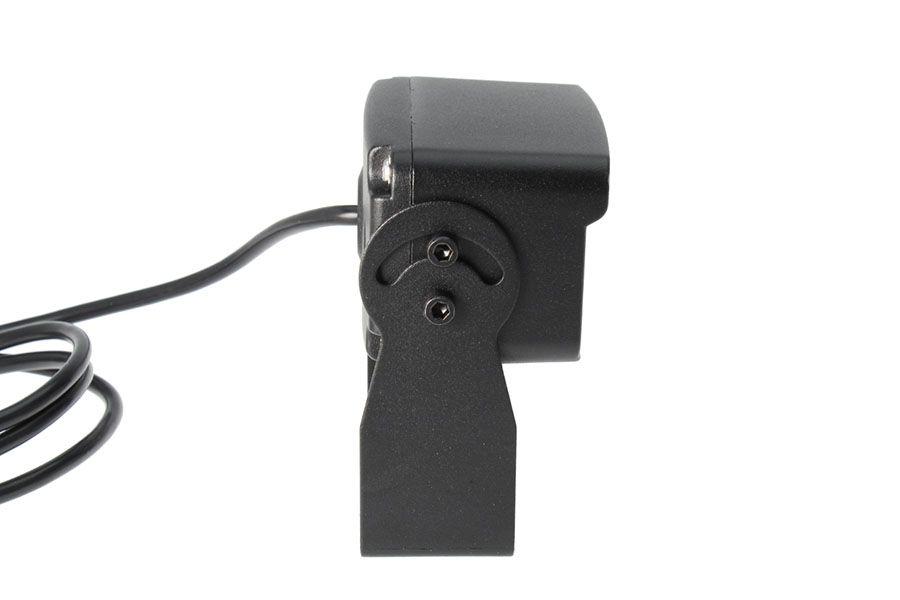

- Heavy cast casing and steel mounting bracket
- Locking weather tight connector
- 1 year camera warranty!
**Not compatible with Super Duty trucks that have the 360 degree view system** See CS-FTRSK-17SD-TRL.
