Description
This is a plug and play camera kit that will allow you to add a trailer camera to your 2017-2024 Ford® Super Duty truck that has the 360 degree view system from the factory!
This kit is designed to add a rear camera to the back of your travel trailer or 5th wheel! This comes in handy when you have a trailer behind the truck since the rear of the trailer is a serious blind spot! This kit is designed to solve that problem by adding the second rear camera on the rear of the truck or trailer. Comes with everything you need to install the camera on the rear of the trailer. Simply mount the camera on any surface and run a plug and play harness to the 12 pin auxiliary camera plug under your spare tire.
Optional: Add our trailer quick disconnect system allowing you to disconnect your trailer with ease by making the camera connections as simple as unplugging the lights of the trailer.
The camera can be viewed on your factory display by pressing the AUX option on the display.
Your truck will only have the 12 pin auxillary plug under the spare tire if the truck has the 360 degree/bird’s eye view system from the factory. You must lower your spare tire to access the connection. This does not plug in at the tailgate.

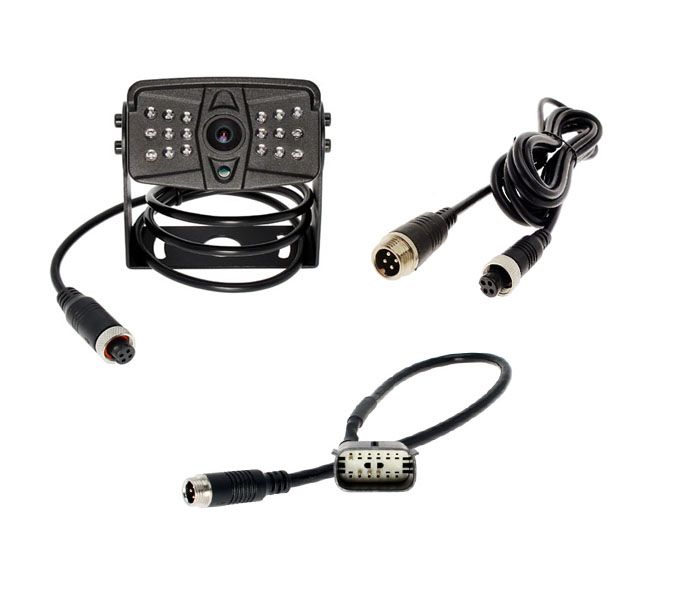

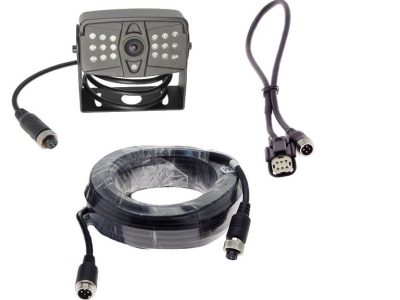

Kit includes the following:
- Heavy duty commercial camera with Sony CCD sensor
- OEM to commercial coax conversion harness
- 32′ coaxial wire harness with weather tight connectors (unless different option selected above)
- Camera harness has factory ends for plug and play with your existing wiring

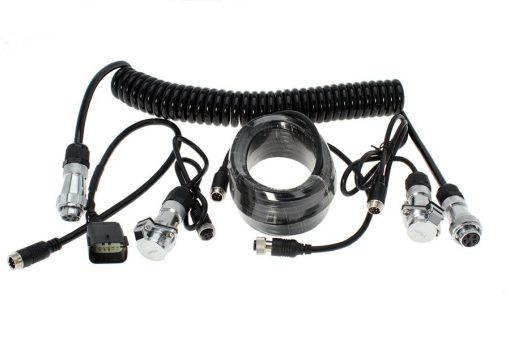

- Optional: Trailer quick disconnect system for easy camera connections – weather tight!
- One year warranty!
Camera Specifications:
- Sony Ultra CCD for a clear image
- Infra-red LED’s that will create a daytime like display even in complete darkness
- 150 degree view
- 700 TV lines of resolution
- 0 lux (no light required to operate)
- Heavy cast casing, steel mounting bracket
- Locking weather tight connector
Click HERE to see a video of the install!
Display not included.
*Choose the cable length from the drop down above.
**Choose “Reverse” image camera if you want the image to be mirrored. Choose “Front facing” image for the camera if you will be mounting it in the bed of the truck and want the image to be non-mirrored.
